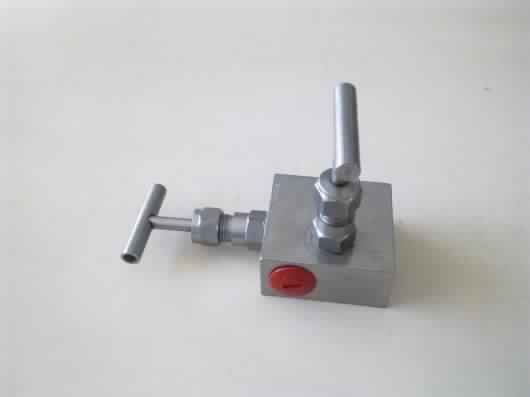

Bleed Valve – 2 Way

Posted Under:

Two valve manifold is designed in a single block with female screwed inlet and outlet port combining isolation valve and vent valve. Generally used on static pressure transmitters, switches or gauges.

  • Connections:Process: 1/2″NPT (F)
    • Instrument: 1/2″NPT (F)
    • Drain/Vent: 1/4″NPT (F)
  • Test Pressure:@ 25′C Room Temperature
    • Hydrostatic: Body – 620 bar
    • Seat – 415 bar
    • Pneumatic: Seat – 40 bar
  • Gland Packing:PTFE: Standard
    • : GRAPHOIL: Temperatures above 180°C
  • Material:A 105, A 1 82 / A 479 GR F 304,
    • A 1 82 / A 479 GR F316, Monel, Hastelloy
  • Finish: CS zinc plated. SS Natural
  • Option: Drain Plug. Three piece union for gauge positioning
  • Accessory: Mounting Bolts – IS: 1364 – 1960 – 2 Nos
