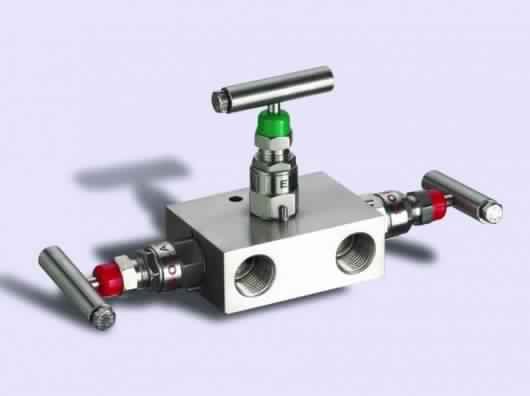

Block Type – 3 Way

Designed for applications to facilitate remote mounting of differential pressure instruments. Dimensions shown above are for the standard 54 mm or 2 1/8 inch instrument connection. Centre distance found in majority of instruments. The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary. Please consult us for these dimensions. Useful for installations in remote fields eliminating conventional method of piping.

  • Connections: Process: ½” NPT (F)
    • Instrument: ½” NPT (F)
    • Drain/Vent: ½” NPT (F)
  • Test Pressure:@ 25C Room Temperature
    • Hydrostatic: Body – 620 bar
    • Seat – 41 5 bar
    • Pneumatic: Seat – 40 bar
  • Gland Packing:PTFE: Standard
    • : GRAPHOIL: Temperatures above 1 80′C
  • Material:A 105, A 182 GR F 304,
    • A 1 82 GR F 31 6, Monel, Hastelloy
  • Finish: CS zinc plated. SS Natural
  • Option: Drain Port on instrument side with drain plug (Dimension 64 becomes 82)
    • Test Port on process side with plug.
  • Accessory: Mounting Bolts – IS: 1364 – 1960 – 2 Nos
